Armstrong · Masts
Foil Drive Foil Assist Integrated Carbon Mast

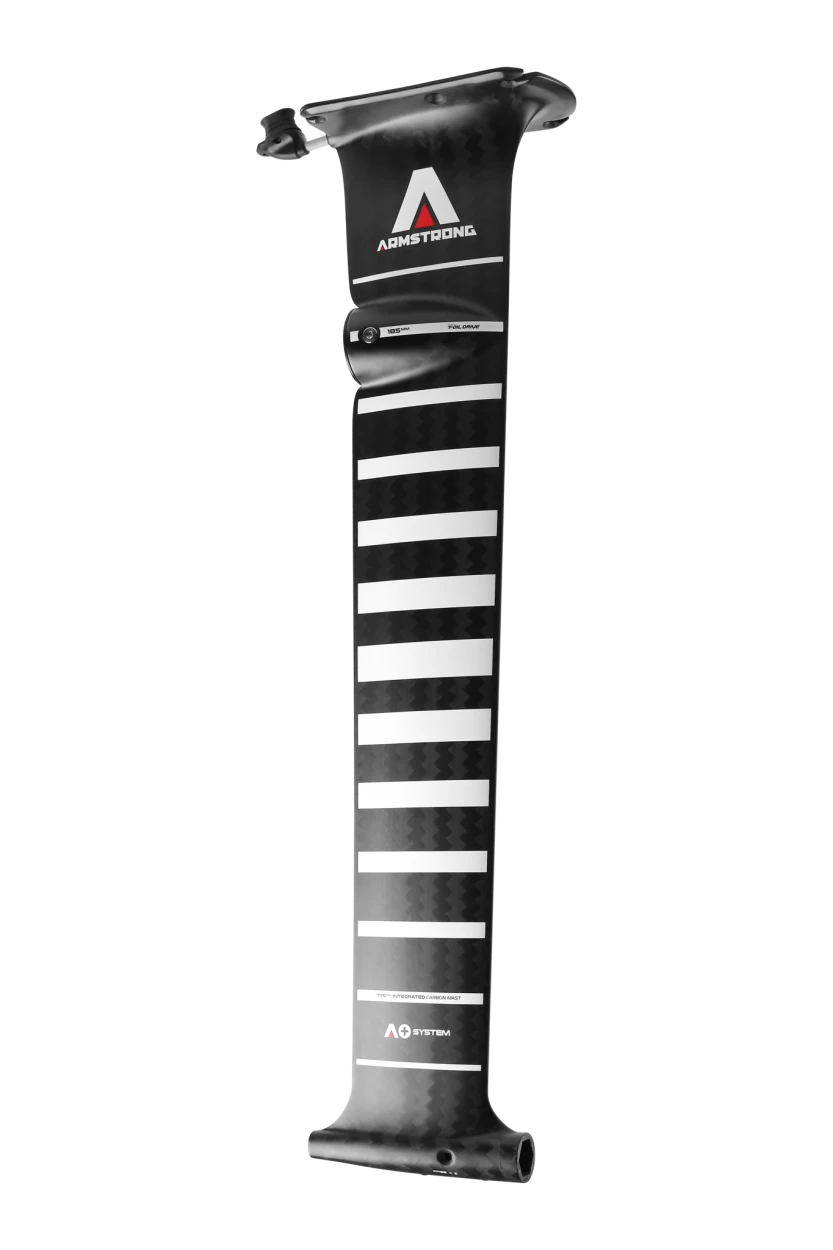

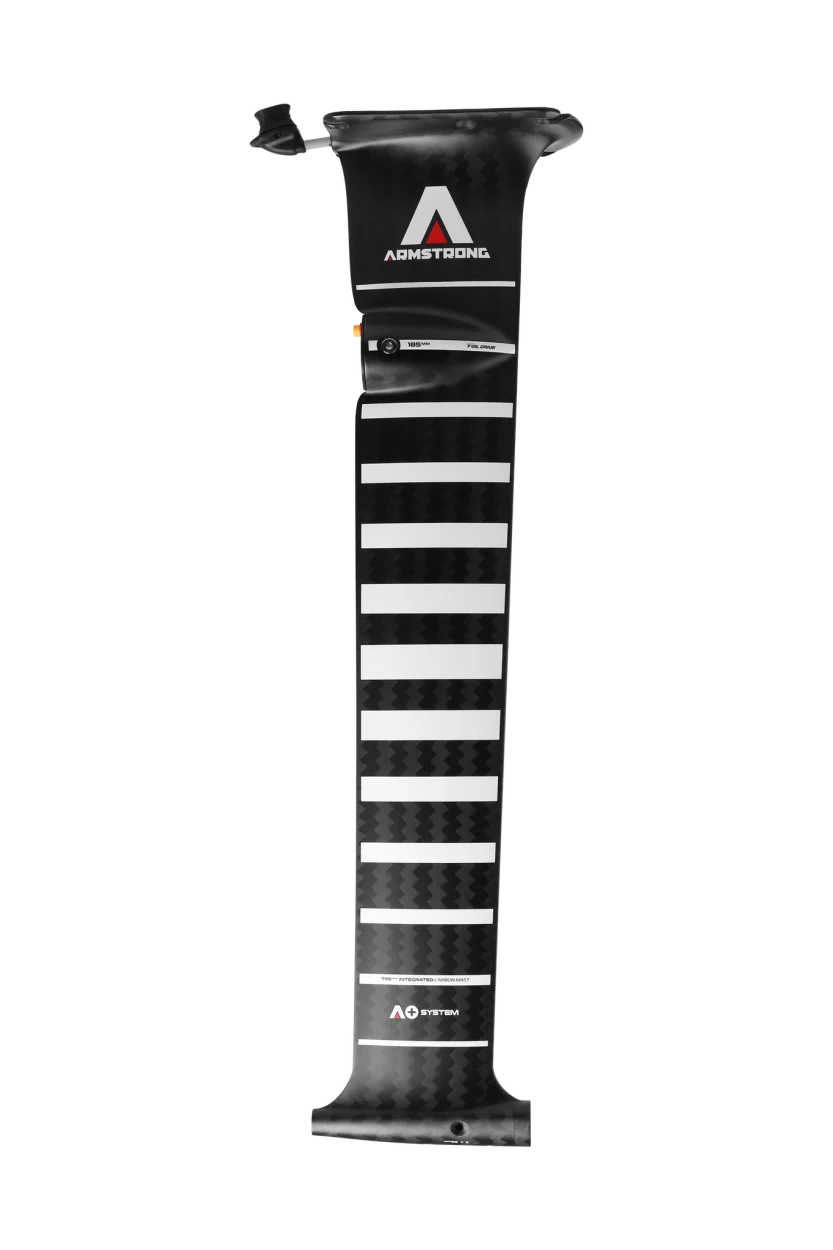

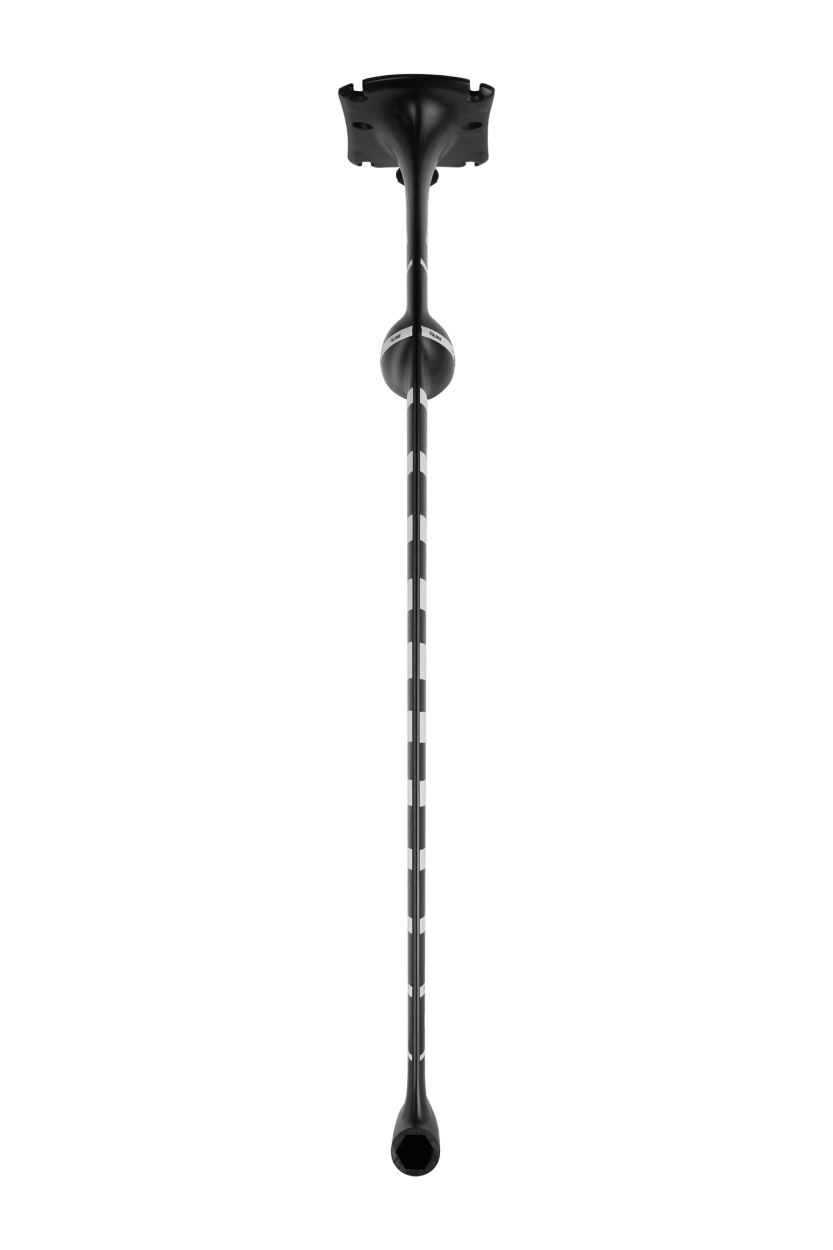

A Foil Drive setup without the bolt-on. The motor pod is built into the mast at 185 mm and sits further forward than most integrations, which cuts drag at the front end and makes the lift come on smoothly. Same Toray high modulus carbon layup as the Performance Carbon Mast. One length: 795 mm. Motor sold separately.
€2,039
Price includes EU VAT · charged in EUR
Earn €101.95 Tow Credit with this purchase, redeemable on tow sessions in Milfontes.
Delivery
- ◆Free shipping, always — we ship with UPS to any address in the EU.
- ◆Average delivery time is 10 working days. Contact Lars on WhatsApp to get a more precise date.
- ◆Rather pick it up? Collect in Vila Nova de Milfontes around your tow sessions, or at our warehouse in Castricum (NL).
- ◆Returns: 14-day EU right of withdrawal on unused gear — see the returns policy.

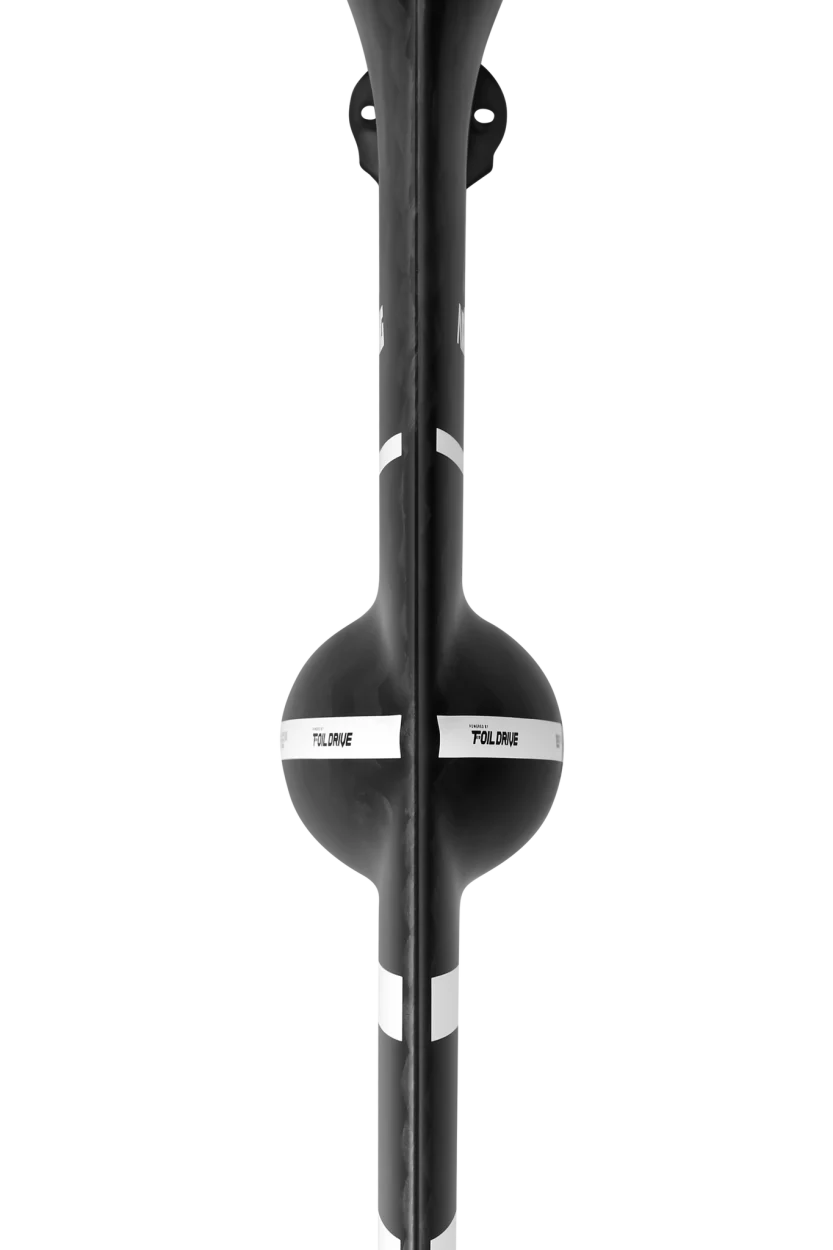

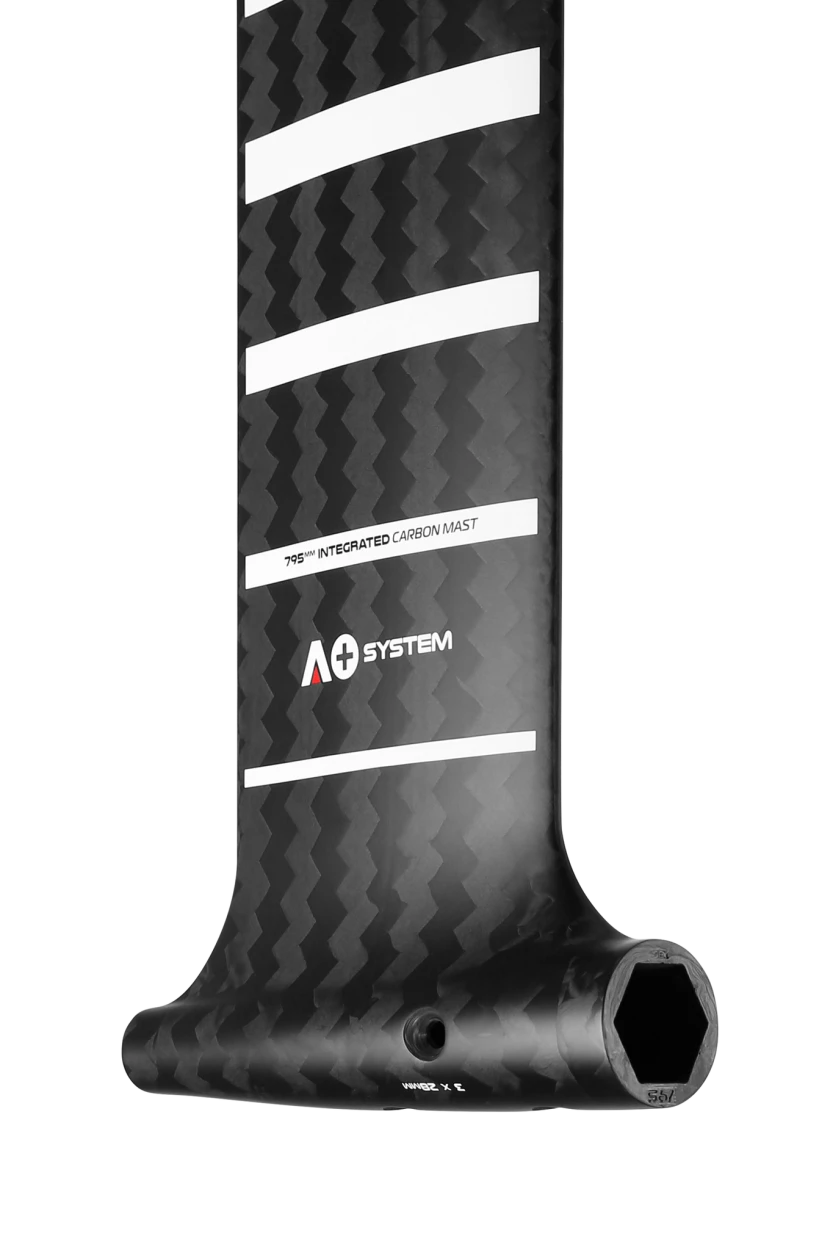

The pod position is the whole design. Sitting further forward than a typical integration, it reduces drag ahead of the mast and gets more out of the prop, so power-up is seamless rather than a shove. The mast itself shares the layup and design DNA of Armstrong's Performance Carbon Mast: Toray high modulus carbon, high stiffness, low flex, precise feedback whether you are pumping through bumps or carving a section. The A+ System joins mast, fuselage, front wing and stabilizer with a hexagonal tapered fit that is torsionally rigid and durable, with titanium and stainless steel hardware to keep corrosion out.
Specifications
- Length: 795 mm

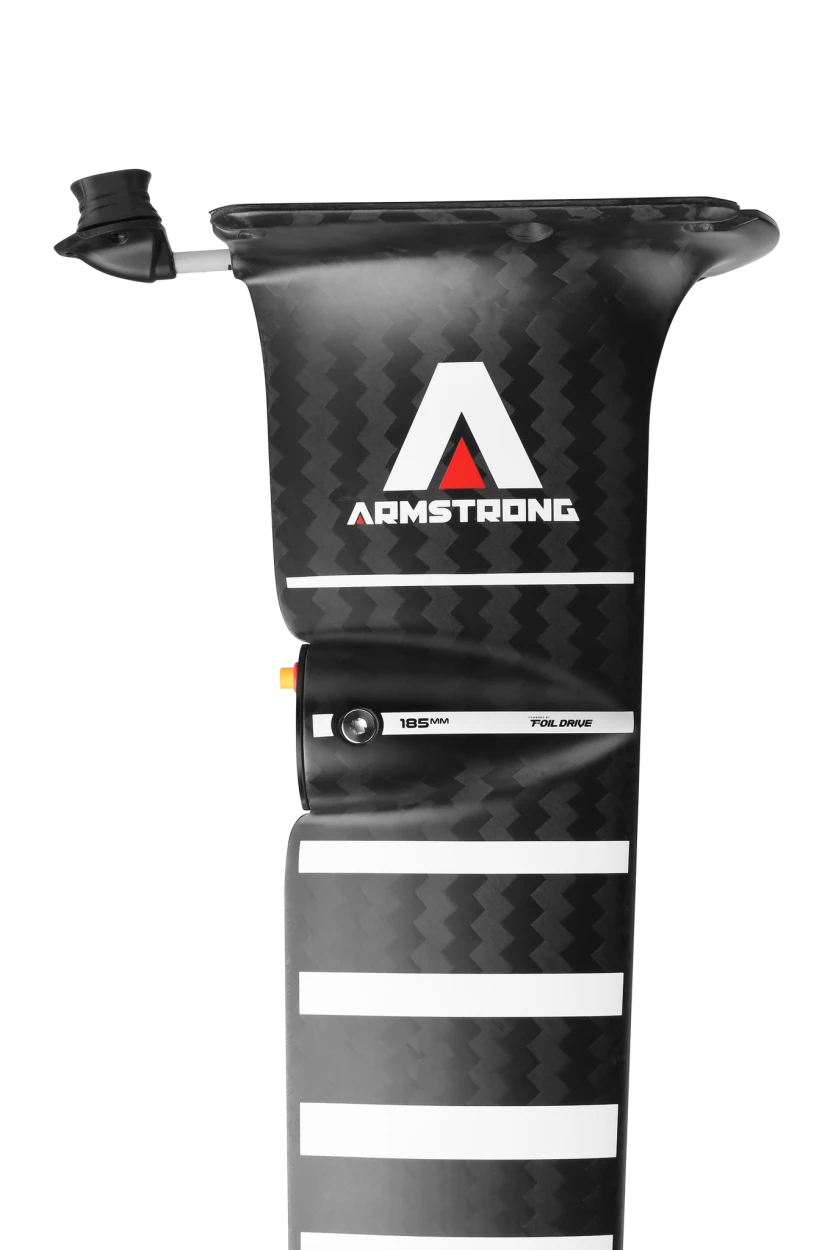

- Pod height: 185 mm — the sweet spot for most foil-assist disciplines: low drag, well balanced, and practically invisible once you are on foil. Some advanced riders prefer a pod closer to the board and some beginners stretch to 220 mm for extra margin, but 185 mm remains the versatile middle ground.
Compatibility
Compatible with Foil Drive V2 motors only — both Standard and High Power — with two-blade props, and with Foil Drive Assist MAX and Foil Drive Assist Slim. Not compatible with Gen1 Foil Drive systems (Assist or Assist PLUS). The Foil Drive motor is sold separately.
What's included
- Protective cover
- T30 Torx tool

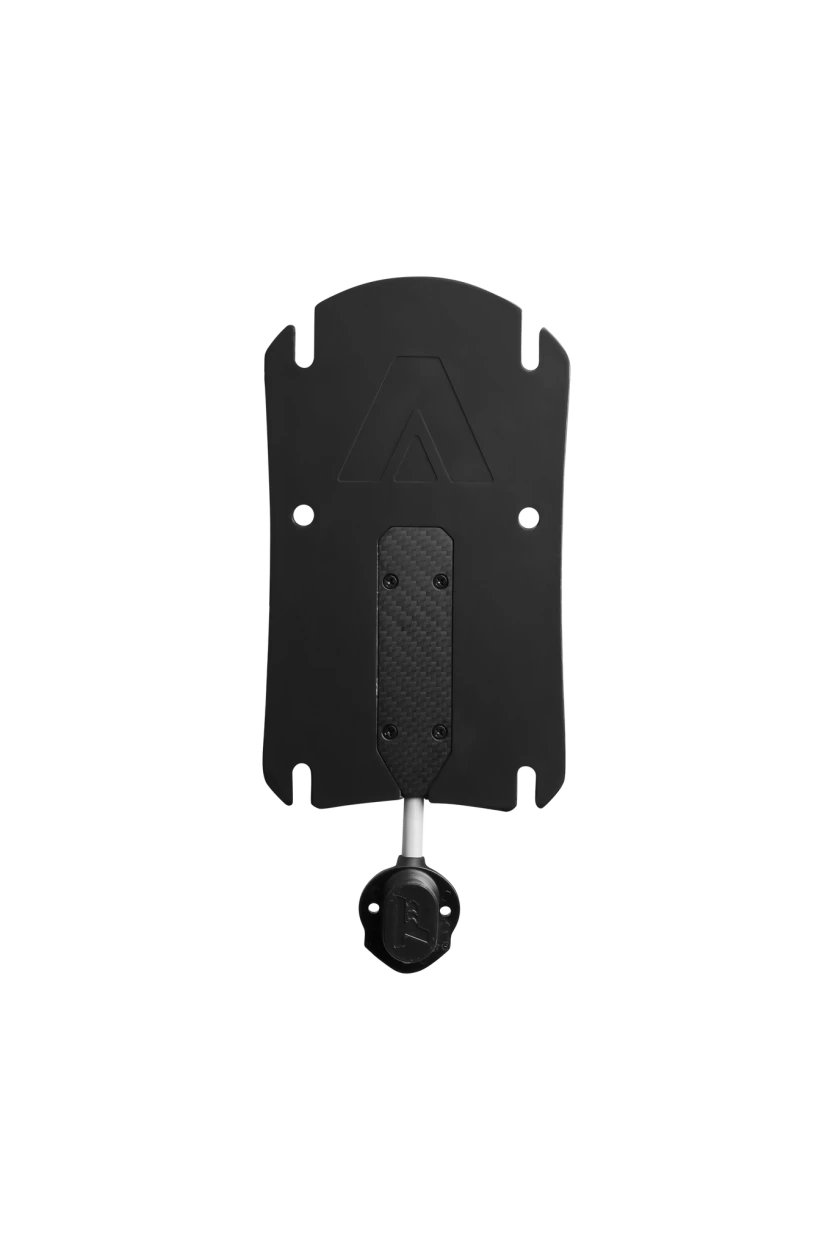

- Puck hardware: 4x M4 10mm 316 dome head screws, 1x M5 52mm titanium CSK screw, 1x M5 20mm titanium barrel nut
- Mast top hardware: 2x M8 16mm 316 titanium-coated CSK screws (T40 Torx head)
- Mast bottom hardware: 3x M6 28.5mm CSK screws, 1x M6 titanium barrel nut
Not included: the Foil Drive motor, 4x M7 79mm titanium mast top screws, and 4x titanium T-nuts.
What assist actually changes
Windless, waveless days stop being days off. Recovery between waves is no longer what ends the session, and the peaks you can see but never reach come into range. For someone still learning, it buys time on foil — which is the only thing that ever teaches anyone.
